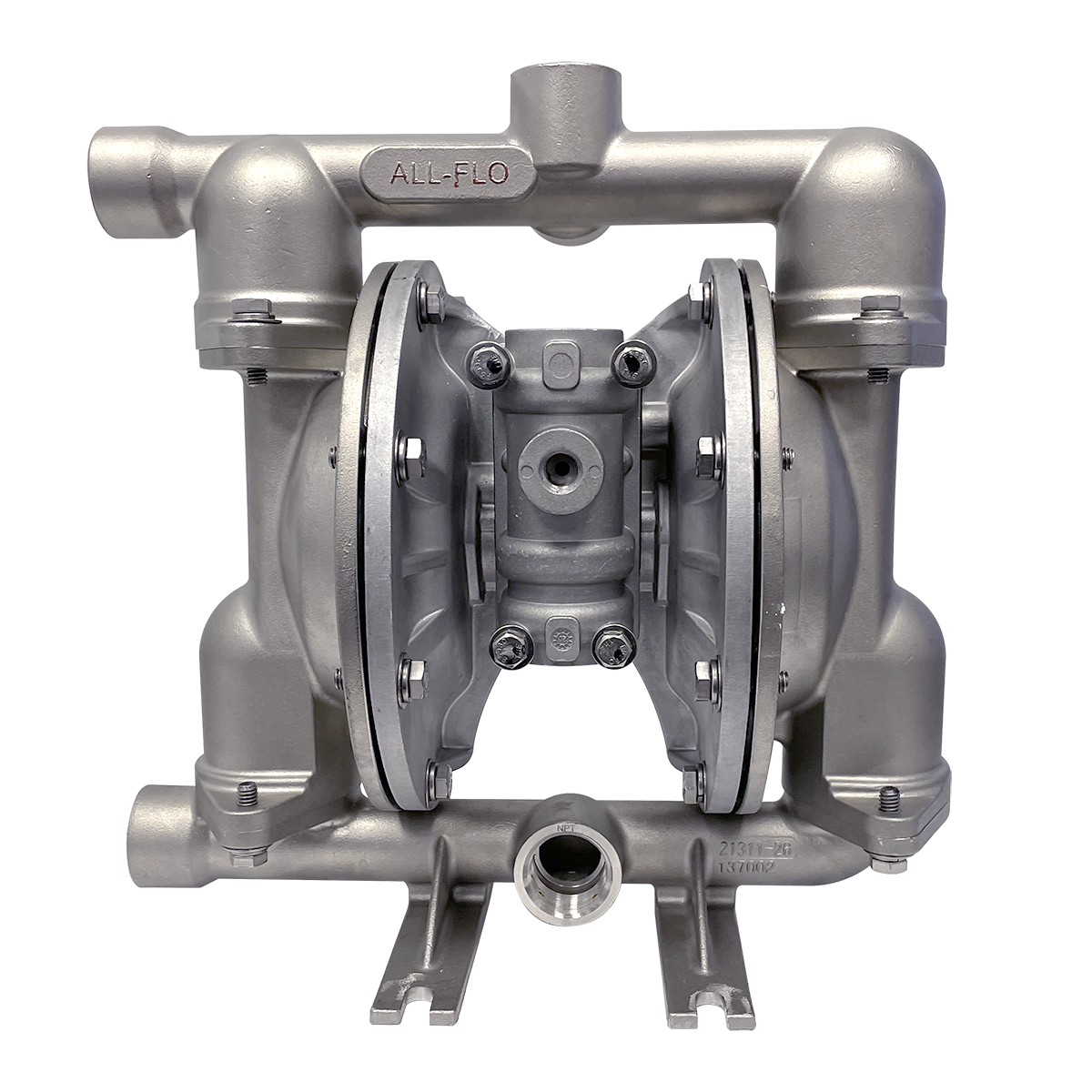

All-Flo A101 Pump 1″ Metal (Stainless Steel) AODD
A101
Pump Size
1”
Air inlet
1/4” FNPT
Liquid Inlet
1”
Liquid discharge
1″
Connection type
FNPT/BSPT (THREADED)
Max flow rate
182 LPM
Max pressure
8.2 BAR (120 PSI)
Max diameter solids
6.4MM
Displacement per stroke
0.28L
Max suction lift capacity
5.2M DRY, 9.1M WET
Pump Details
All-Flo general purpose metallic air operated double diaphragm (AODD) pump are available in three materials: Aluminium, Anodized aluminium and stainless steel. Aluminium and anodized aluminium Air operated double diaphragm (AODD) pumps offer medium corrosion and abrasion resistance, whereas stainless steel pumps are perfect for applications that demand superior chemical and abrasion resistance.
| CONSTRUCTION | |
|---|---|
| Wet End: | Stainless Steel |
| Air End: | Aluminum, PTFE Coated Aluminum |
| Diaphragm: | Buna-N, Bunalast™, Geolast®, PTFE, Santoprene®, FKM |
| Balls: | Buna-N, EPDM, Bunalast™, Geolast®, PTFE, Santoprene®, Stainless Steel, FKM |
| Seats: | Aluminum, Nylon, Polypropylene, Stainless Steel |
| O-Rings: | Buna-N, EPDM, PTFE, FKM |
| Hardware: | Stainless Steel, Plated Steel |
| Muffler: | Metal, Plastic |
