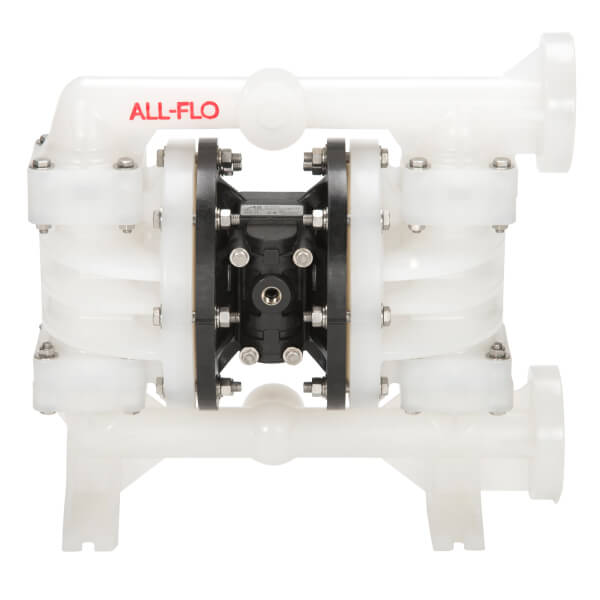

All-Flo A100 Pump 1″ Plastic (Polyproylene/PVDF) AODD
A100
Pump Size
1″
Air inlet
1/4” FNPT
Liquid Inlet
1”
Liquid discharge
1”
Connection type
FNPT/BSPT (THREADED), ANSI/DIN FLANGED
Max suction lift capacity
4.6M DRY, 7.9M WET

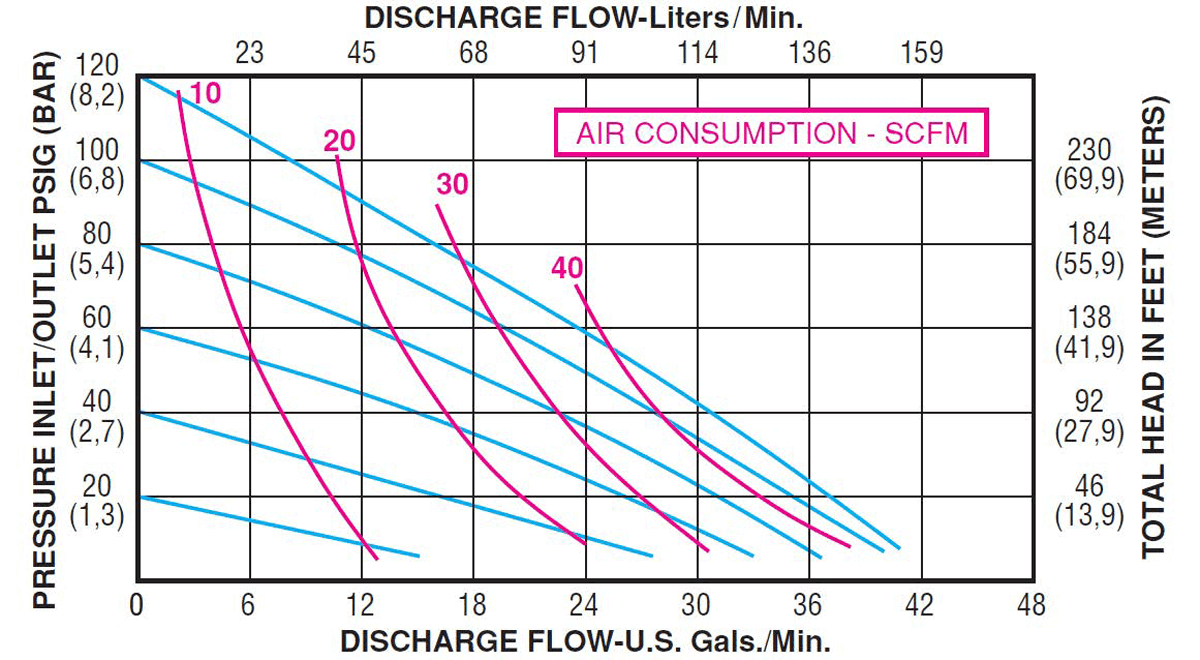

Max flow rate
155.8 LPM
Max pressure
8.2 BAR (120 PSI)
Max diameter solids
6.4MM
Displacement per stroke
0.31L
Pump Details

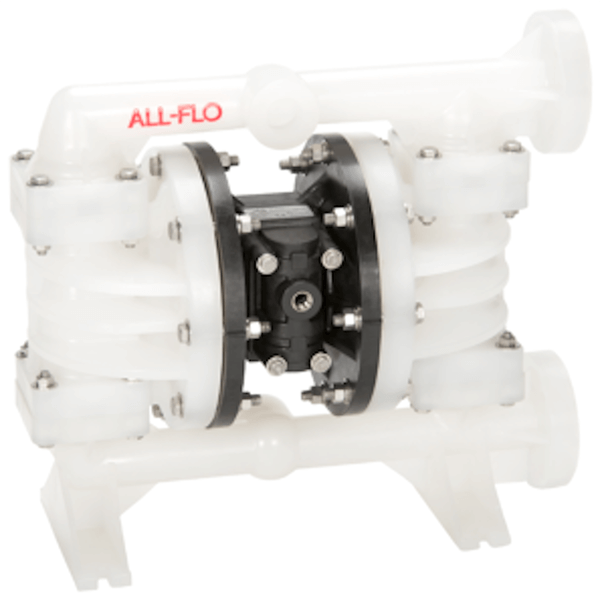

All-Flo’s versatile plastic air-operated double diaphragm (AODD) pump come with housings made of either polypropylene or PVDF. Polypropylene is suitable for a wide range of chemical applications, while PVDF offers superior resistance to both acids and bases, along with better temperature and abrasion protection compared to polypropylene.
| CONSTRUCTION | |
|---|---|
| Wet End: | Polypropylene, PVDF |
| Air End: | Glass Filled Polypropylene |
| Diaphragm: | Geolast®, PTFE with Santoprene® backup, Santoprene®, FKM |
| Balls: | Geolast®, PTFE, Santoprene®, FKM |
| Seats: | Polypropylene, PVDF |
| O-Rings: | Buna-N, EPDM, PTFE, FKM |
| Hardware: | PTFE Coated Stainless Steel, Stainless Steel |
| Muffler: | Plastic |
