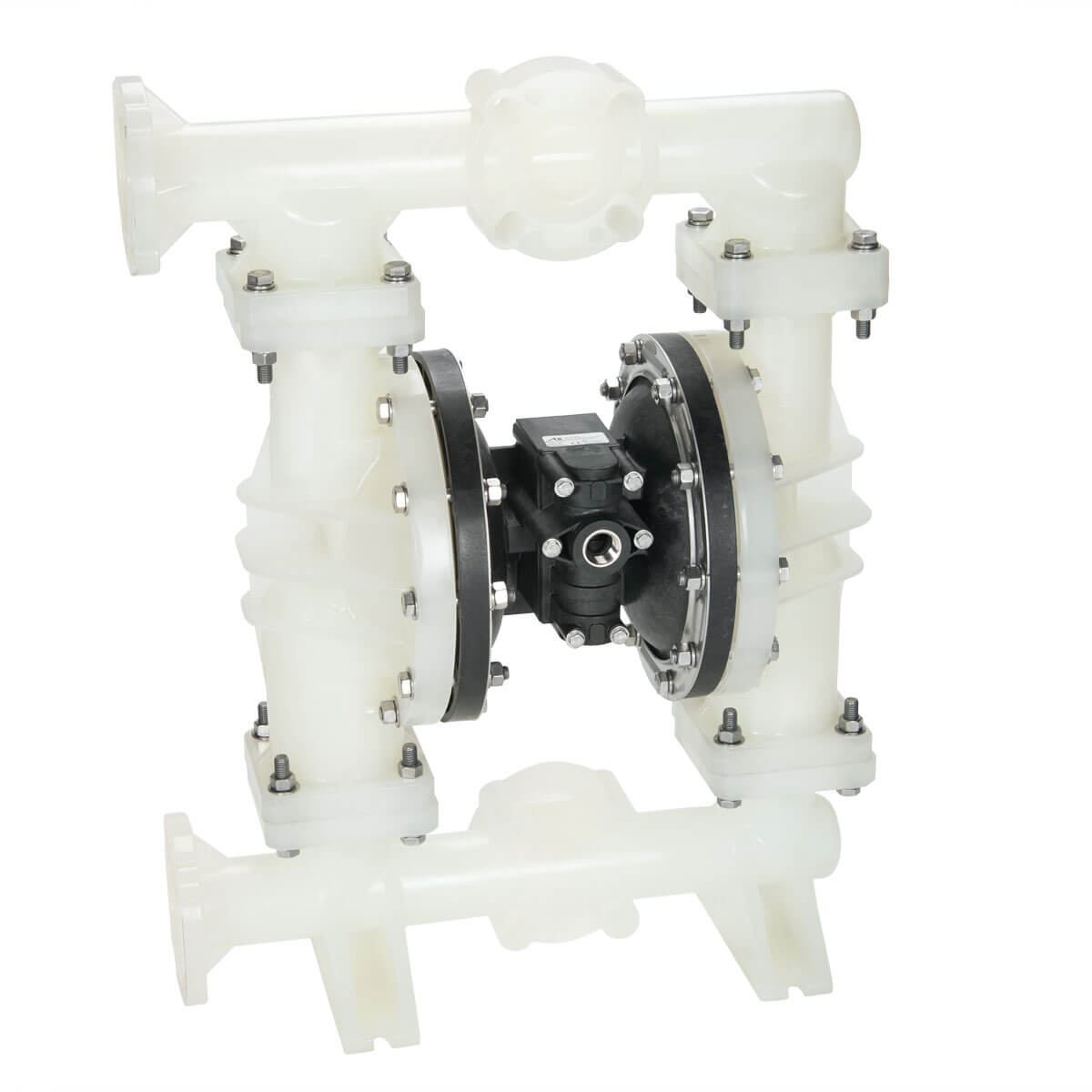

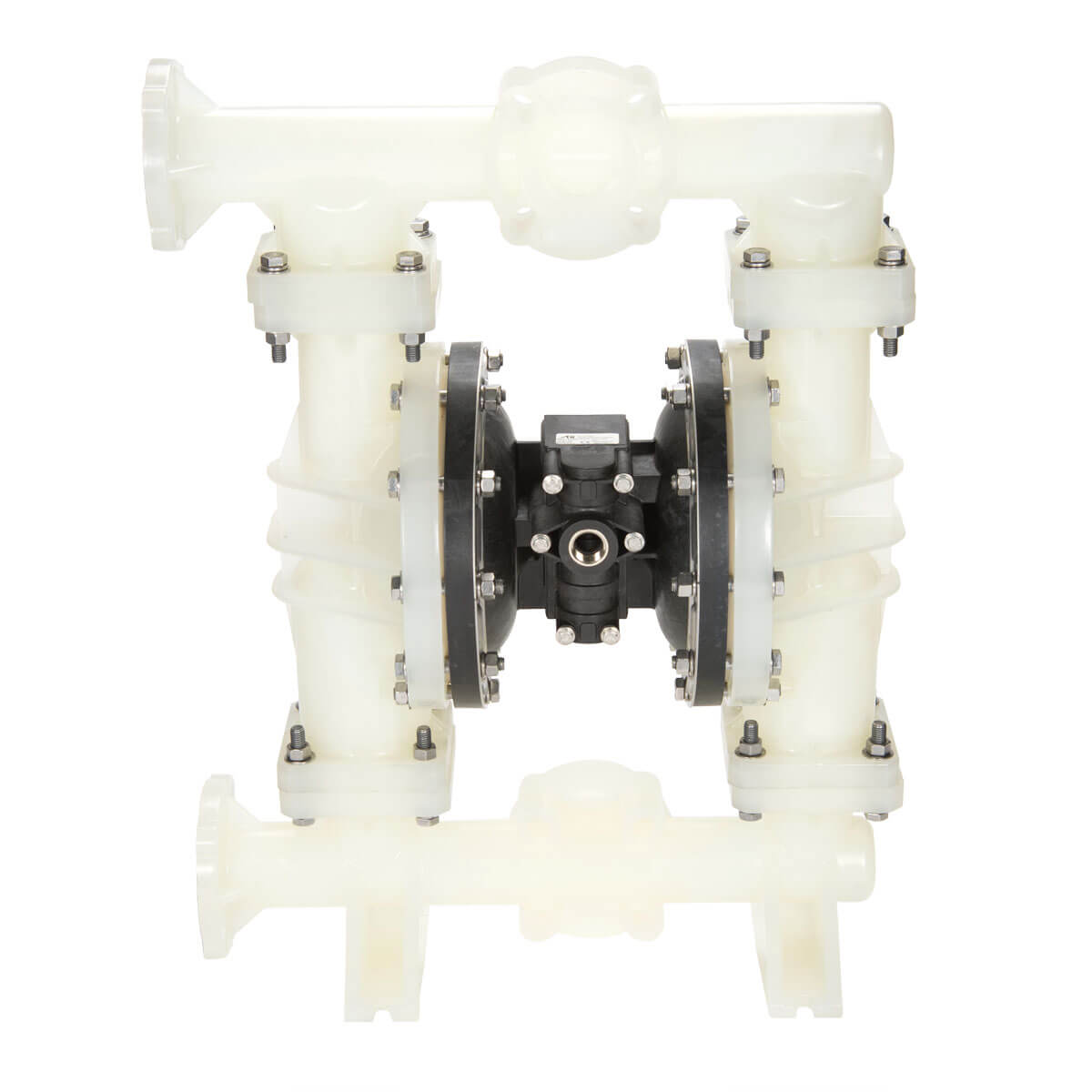

All-Flo A200 Pump 2″ Plastic (Polypropylene/PVDF) AODD
A200
Pump Size
2”
Air inlet
3/4” FNPT
Liquid Inlet
2”
Liquid discharge
2”
Connection type
ANSI/DIN (FLANGED)
Max flow rate
605 LPM
Max pressure
8.2 BAR (120 PSI)
Max diameter solids
6.4MM
Displacement per stroke
1.82 L
Max suction lift capacity
5.2M DRY, 8.8M WET
Pump Details
All-Flo’s versatile plastic air-operated double diaphragm (AODD) pump come with housings made of either polypropylene or PVDF. Polypropylene is suitable for a wide range of chemical applications, while PVDF offers superior resistance to both acids and bases, along with better temperature and abrasion protection compared to polypropylene.
| CONSTRUCTION | |
|---|---|
| Wet End: | Polypropylene, PVDF |
| Air End: | Glass Filled Polypropylene |
| Diaphragm: | Geolast®, PTFE with Santoprene® backup, Santoprene®, FKM |
| Balls: | Geolast®, PTFE, Santoprene®, FKM |
| Seats: | Polypropylene, PVDF |
| O-Rings: | Buna-N, EPDM, PTFE, FKM |
| Hardware: | PTFE Coated Stainless Steel, Stainless Steel |
| Muffler: | Plastic |
