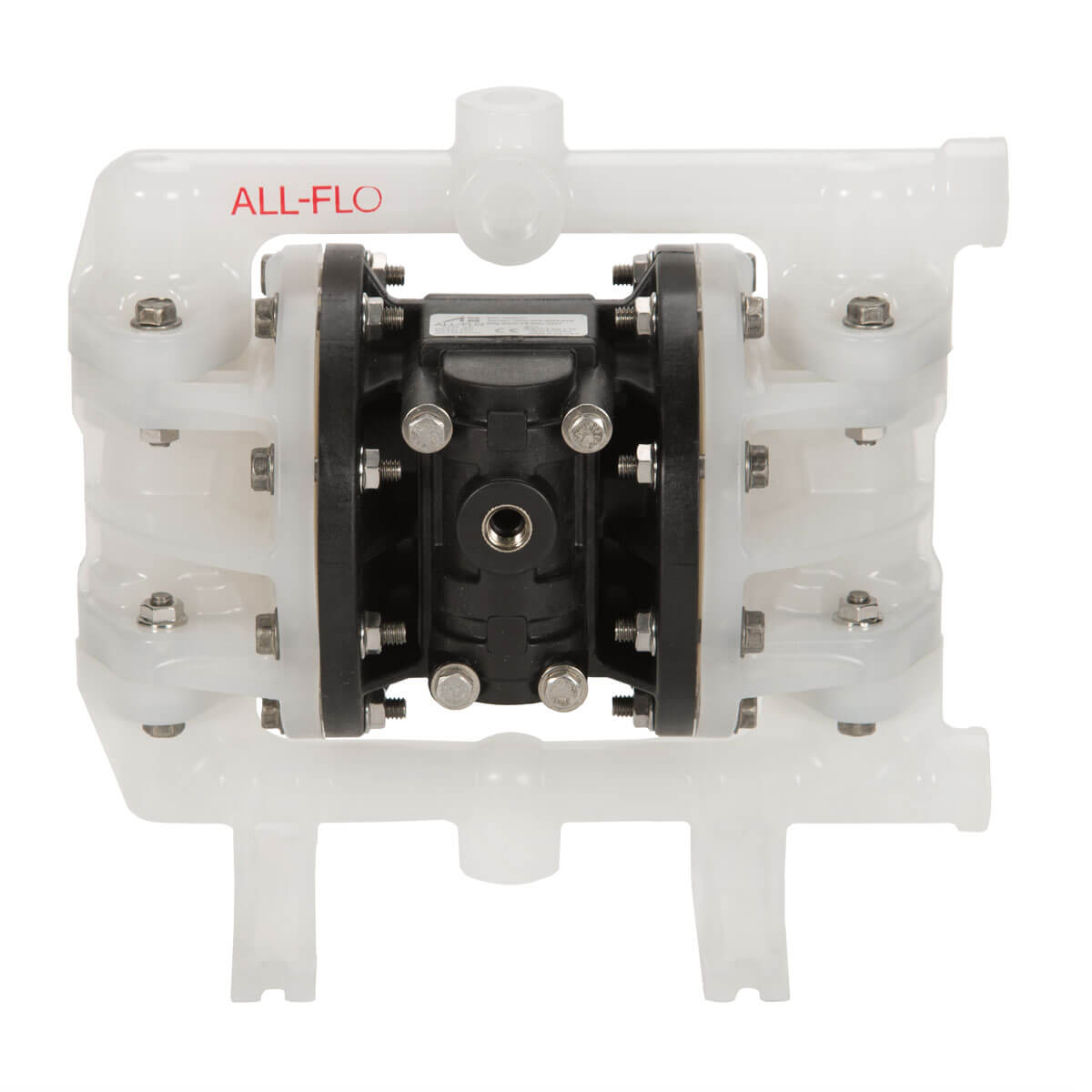

All-Flo A075 Pump 3/4″ Plastic (Polypropylene/PVDF/Conductive Nylon) AODD
A075
Pump Size
3/4”
Air inlet
1/4” FNPT
Liquid Inlet
3/4”
Liquid discharge
3/4”
Connection type
FNPT/BSPT (THREADED)
Max flow rate
64.6 LPM
Max pressure
8.2 BAR (120 PSI)
Max diameter solids
3.2MM
Displacement per stroke
0.10L
Max suction lift capacity
4.6M DRY, 7.9M WET
Pump Details
All-Flo’s versatile plastic air-operated double diaphragm (AODD) pump come with housings made of either polypropylene or PVDF. Polypropylene is suitable for a wide range of chemical applications, while PVDF offers superior resistance to both acids and bases, along with better temperature and abrasion protection compared to polypropylene.
| CONSTRUCTION | |
|---|---|
| Wet End: | Conductive Nylon, Polypropylene, PVDF |
| Air End: | Glass Filled Polypropylene |
| Diaphragm: | Geolast®, PTFE, Santoprene®, FKM |
| Balls: | Geolast®, PTFE, Santoprene®, FKM |
| Seats: | Polypropylene, PVDF |
| O-Rings: | Buna-N, EPDM, PTFE, FKM |
| Hardware: | PTFE Coated Stainless Steel, Stainless Steel |
| Muffler: | Metal, Plastic |
