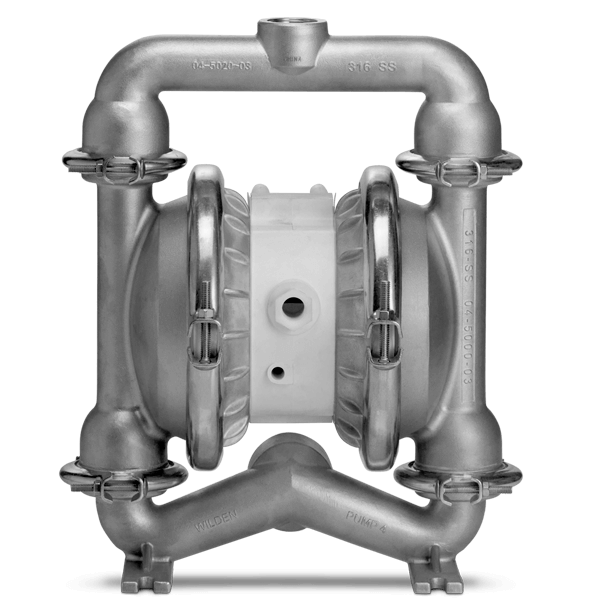

Wilden P4 Pump 38 mm (1-1/2″) Pro-Flo® Saniflo™ FDA Series Clamped Metal AODD
P4
Pump Size
1 1/2”
Air inlet
1/2” FNPT
Liquid Inlet
2”
Liquid discharge
2”
Connection type
Tri-Clamp
Max suction lift capacity
Rubber – 5.8 m (19.0′) Dry, 8.0 (26.0′) Wet
TPE – 5.2 m (17.0′) Dry, 8.8 m (29.0′) Wet
Full-Stroke PTFE – 6.4 m (21.0′) Dry, 9.3 m (30.6′) Wet
Reduced-Stroke PTFE – 3.7 m (12′) Dry, 8.5 m (28′) Wet
Ultra-Flex™ – 5.2 m (17.0′) Dry, 8.5 m (28.0′) Wet
Max flow rate
Rubber – 288 lpm (76 gpm)
TPE – 307 lpm (81 gpm)
Full-Stroke PTFE – 330 lpm (87.2 gpm)
Reduced-Stroke PTFE – 295 lpm (78 gpm)
Ultra-Flex™ – 269 lpm (71 gpm)
Max pressure
8.6 bar pressure (125 psi)
Max diameter solids
4.8mm
Displacement per stroke
Rubber – 0.98 L (0.26 gal)
TPE – 1.1 L (0.29 gal)
Full-Stroke PTFE – 1.1 L (0.29 gal)
Reduced-Stroke PTFE – 0.53 L (0.14 gal)
Ultra-Flex™ – 0.76 L (0.20 gal)
Pump Details
The Wilden Saniflo FDA series pumps cater to standard food processing needs that don’t necessitate the hygienic series (HS) or clean-in-place (CIP) features. Ideal for the sanitary environments handling high acid, high sugar and high fat substances, these pumps offer straightforward installation and a sturdy build. Compliant with FDA, CE,EC 1935/2004 and ATEX standards, they ensure reliability and regulatory adherence
- Tri-clamp connections with wingnut clamped design
- Quick breakdown/reassembly for cleaning
- Greater flow – more gallons pumped per SCFM
- Two air distribution system options:
- Pro-Flo® SHIFT: multiple material options, high efficiency, high flow
- Pro-Flo: durable, economical, one material option
