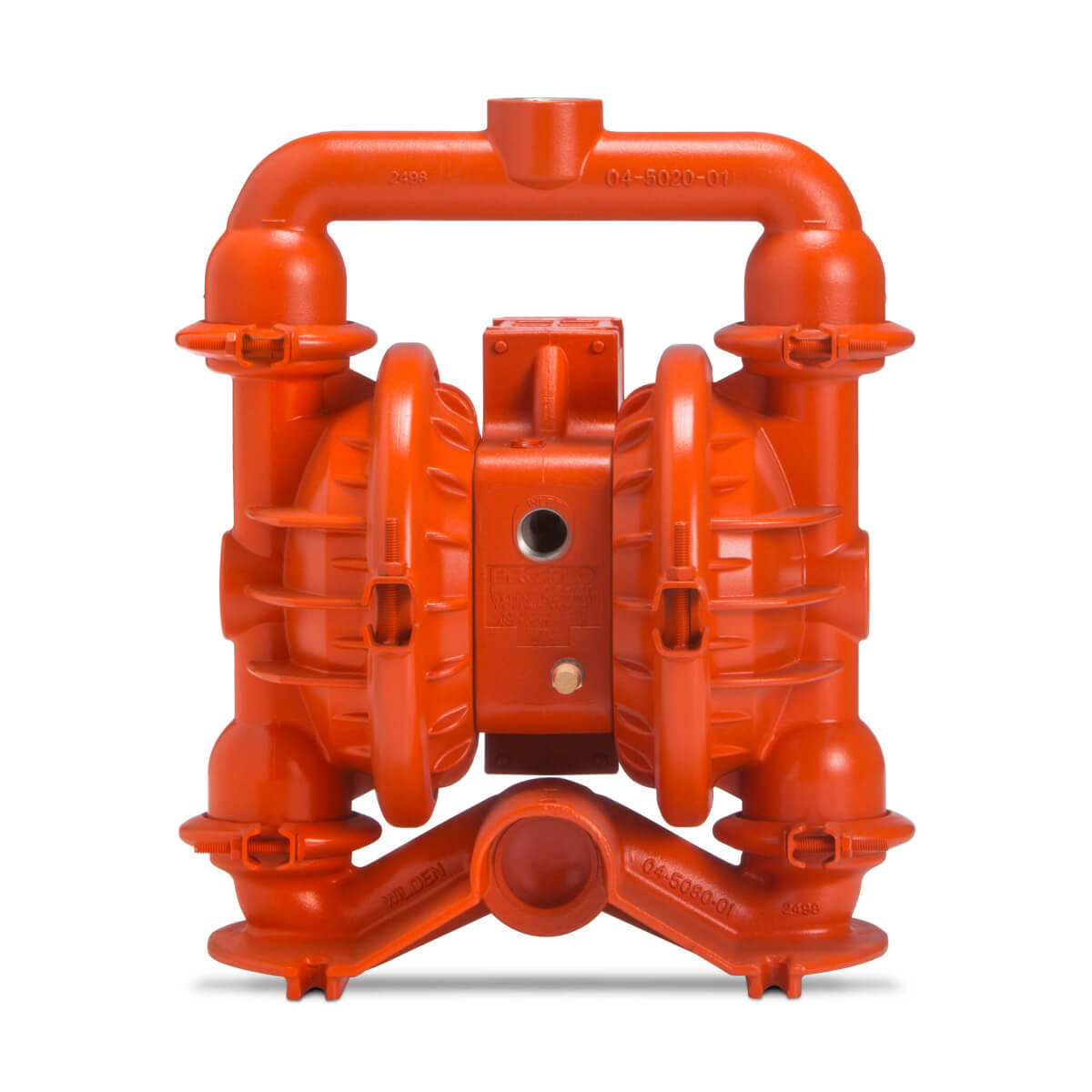

Wilden PS4 Pump 38 mm (1-1/2″) Pro-Flo® SHIFT Series Clamped Metal AODD
PS4
Pump Size
1 1/2”

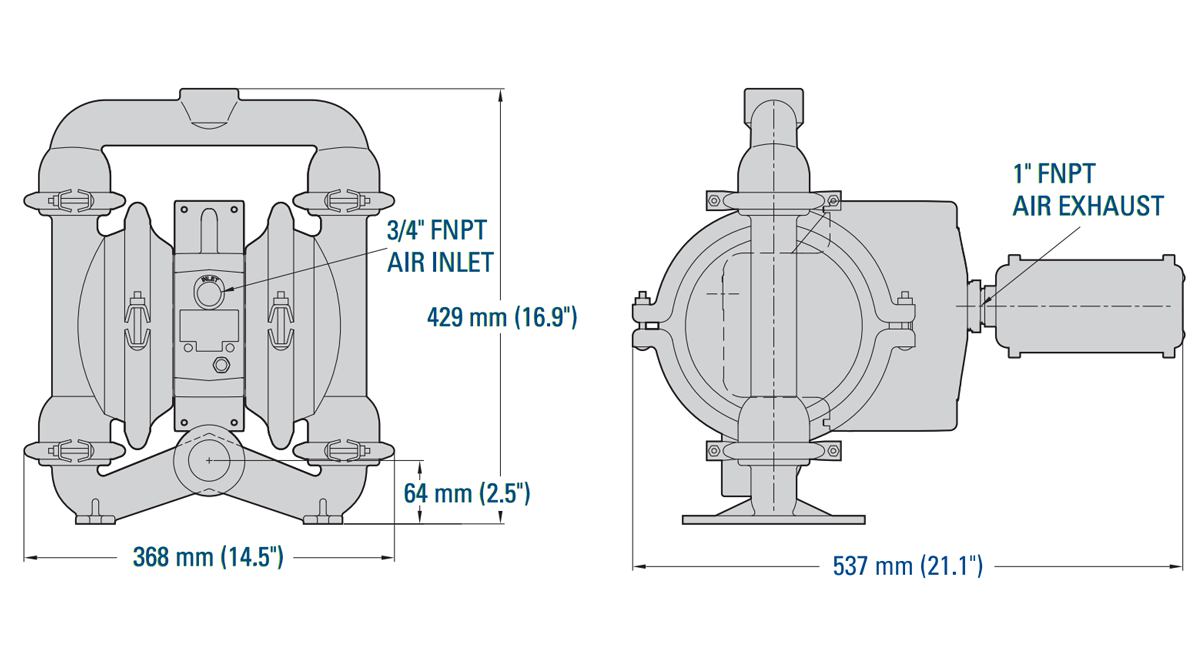

Air inlet
3/4” FNPT
Liquid Inlet
1 1/2”
Liquid discharge
1 1/4”
Connection type
NPT/BSP (Threaded)
Max suction lift capacity
Rubber – 7.0 m (22.9′) Dry, 8.6 m (28.4′) Wet, EZ-Install TPE – 7.1 m Dry (23.3′), 8.6 m Wet (28.4’), Full-Stroke PTFE – 7.0 m (22.9′) Dry, 8.6 m (28.4′) Wet

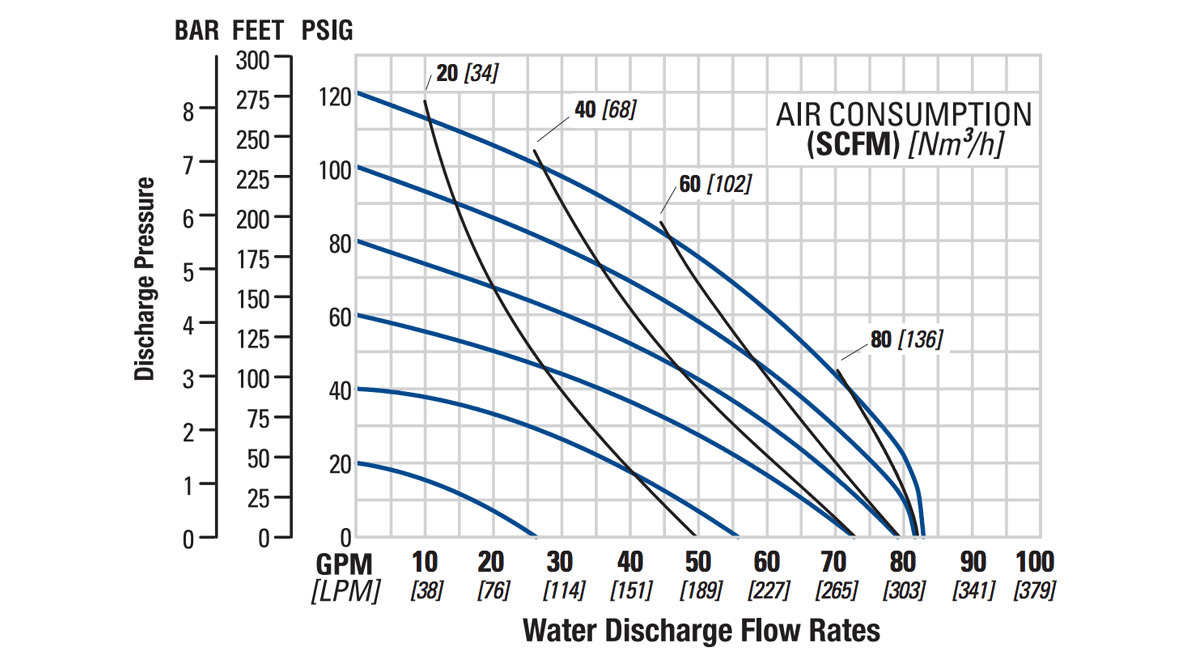

Max flow rate
Rubber – 310 lpm (82 gpm), EZ-Install TPE – 314 lpm (83 gpm), Full-Stroke PTFE – 375 lpm (99 gpm)
Max pressure
8.6 bar pressure (125 psi)
Max diameter solids
4.8mm
Displacement per stroke
Rubber – 1.0 L (0.27 gal), EZ-Install TPE – 1.0 L (0.27 gal, Full-Stroke PTFE – 1.0 L (0.27 gal)
Pump Details
The Wilden Pro-flo Shift (PS) is the industry premier air distribution system (ADS) and your ideal solution to increase productivity, lower energy consumption, reduce air consumption and simplicity in maintenance. The design benefits are unmatched by any other ADS on the market. Wildens Pro-flo shift features an air control spool that automatically optimises air consumption and eliminates overfilling of the air chamber with no reduction in flow rate.
Features and benefits of the Pro-Flo SHIFT ADS include:
- Up to 60% in air savings all while retaining existing flow rates
- Reduced total cost of ownership
- Ease of maintenance
- Ability to be used in harsh operating environments
- No electricity required
- Designed off the same basic design principles as the tried and true Pro-Flo Series Unbalanced spool preventing stalling.
- Simple pilot spool to trigger which air chamber is filled
- Minimum moving parts (less wear)
