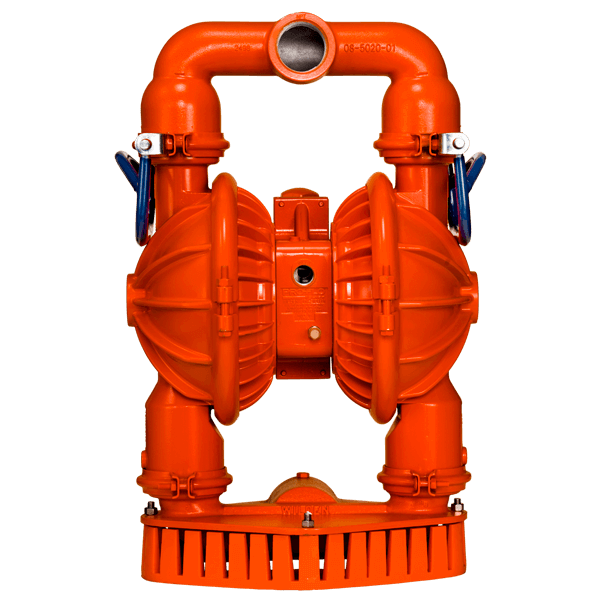

Wilden PS8 Pump 51 mm (2″) Pro-Flo® SHIFT Stallion® Clamped Metal AODD
PS8
Pump Size
2”
Air inlet
3/4” FNPT
Liquid Inlet
2”
Liquid discharge
2”
Connection type
NPT/BSPT (Threaded)
Max suction lift capacity
EZ-Install TPE – 5.3 m (17.5′) Dry, 9.0 m (29.5′) Wet
Max flow rate
EZ-Install TPE – 634 lpm (168 gpm)
Max pressure
8.6 bar pressure (125 psi)
Max diameter solids
19mm
Displacement per stroke
EZ-Install TPE – 2.0 L (0.52 gal)
Pump Details
The Wilden Stallion series air operated double diaphragm (AODD) pumps excel in demanding mining environments, effortlessly managing solid-laden slurries. Their resilience is enhanced by a robust construction boasting ample internal clearance and a spacious flow-through pathway, ensuring unimpeded flow of large solids and minimising the risk of clogging. The inclusion of a polyurethane screen base at the inlet enhances the pumps durability, making it a reliable choice for challenging mining applications.
The Wilden Stallion series technology integrates a modified ball/seat check valve assembly, enabling the passage of solids.
- Clamped design with handles for lightweight portability
- Large internal clearances due to modified ball, seats, diaphragms and shafts to handle solid-laden slurries
- Polyurethane screen base to act as an initial filter to keep larger solids from damaging the pump
- Powered by Pro-Flo® SHIFT air distribution system (ADS)
