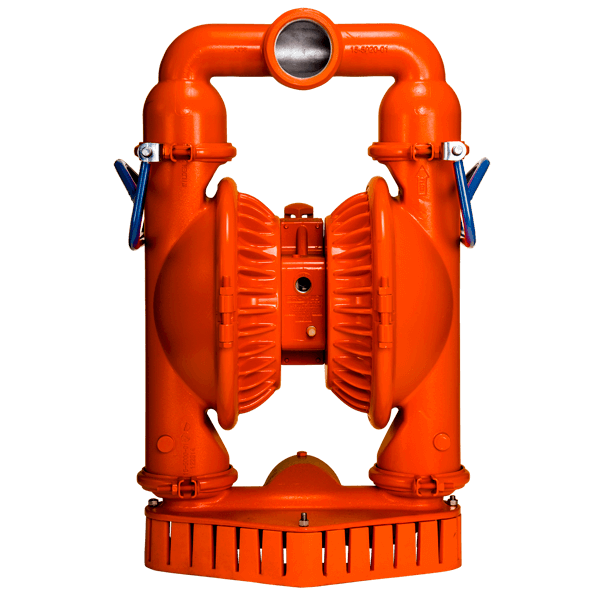

Wilden PS15 Pump 76 mm (3″) Pro-Flo® SHIFT Stallion® Clamped Metal AODD
PS15
Pump Size
3”
Air inlet
3/4” FNPT
Liquid Inlet
3”
Liquid discharge
3”
Connection type
NPT/BSPT (Threaded)
Max suction lift capacity
EZ-Install TPE – 4.7 m (15.3′) Dry, 9.0 m (29.5′) Wet

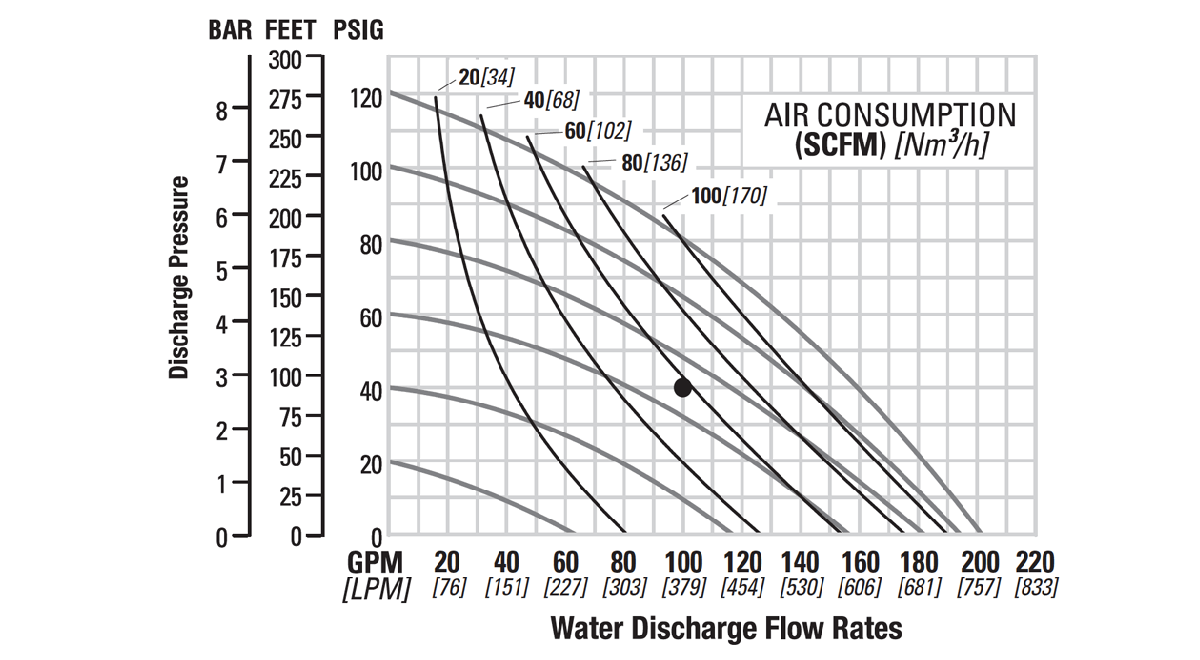

Max flow rate
EZ-Install TPE – 764 lpm (202 gpm)
Max pressure
8.6 bar pressure (125 psi)
Max diameter solids
25mm
Displacement per stroke
EZ-Install TPE – 3.7 L (0.97 gal)
Pump Details
The Wilden Stallion series air operated double diaphragm (AODD) pumps excel in demanding mining environments, effortlessly managing solid-laden slurries. Their resilience is enhanced by a robust construction boasting ample internal clearance and a spacious flow-through pathway, ensuring unimpeded flow of large solids and minimising the risk of clogging. The inclusion of a polyurethane screen base at the inlet enhances the pumps durability, making it a reliable choice for challenging mining applications.
The Wilden Stallion series technology integrates a modified ball/seat check valve assembly, enabling the passage of solids.
- Clamped design with handles for lightweight portability
- Large internal clearances due to modified ball, seats, diaphragms and shafts to handle solid-laden slurries
- Polyurethane screen base to act as an initial filter to keep larger solids from damaging the pump
- Powered by Pro-Flo® SHIFT air distribution system (ADS)
